DESCRIPTION:
Scope of Application:
Suitable for:
1. Flat road and long gentle slope, 450W / 600W pure electric motor can work continuously;
2. Continuously climb steep slopes, 600W motor can steeply climb steep slopes, plus human stampede much better; 450w recommended match with bicycle variable speed middle-low gear.
3. Especially suitable for long-distance riding and harsh conditions, such as China Sichuan-Tibet line.
Installation requirements: 68mm five-way, British thread
Motor 48V 450W and 600W the same size, just weight light 1KG.
Weight:
450W motor Kit increase the weight 3.8KG, package gross weight 7.3KG;
600W motor kit to increase the weight of 4.8KG, package weight 8.3KG.
Current: 450W controller current limit 22A; 600W controller current limit 30A.
The controller features:have cruise, third gear features.
The default is without PAS sensor function (power bigger , assistant power too strong, the actual effect is not good), If need bring the PAS sensor function please take notice in order.
Standard U-bolt inner diameter 45mm, oblique beam too thick or too thin, the end-user should be based on the diameter of the bike tube use the appropriate size U-bolt replacement, install
The plate is re-punched according to the size of the U-bolt .so that the motor can be firmly fixed.

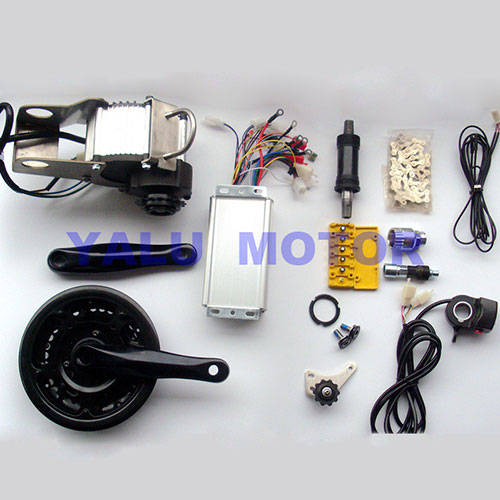

Includes:
This Item Include:
Item List:

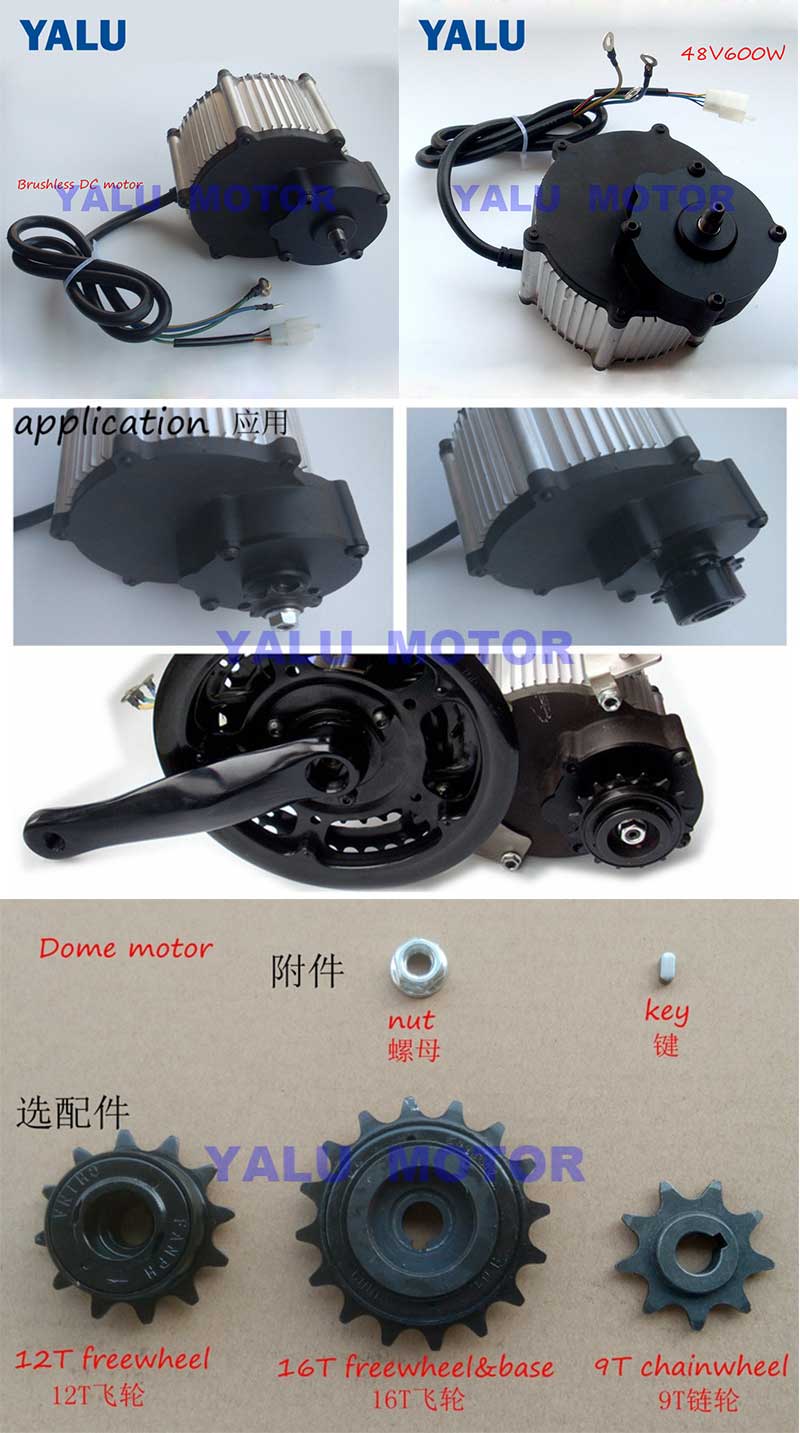

1: Motor: 48V450W / 600W brushless gear motor 1pcs,Aluminum alloy shell, mute, high efficiency, small size, light weight, bigger torque ;
2.Controller 1 pcs
3.Wiring board 1pcs;
4.48V450W / 600W brushless controller 1pcs;
5.brake power sensor 1 set: left&right each one set ;
6.Thumber throttle 1 pcs: with power switch, power indicator;
7.Tooth plate 1 PCS: three-speed gear plate, steel material;
8.Centre shaft 1set: square hole bearing centre shaft;
9.Crank: the left and right each 1pcs, forged aluminum alloy material;
10.Tensioner and bracket;
11.Motor bracket 1pcs: stainless steel;
12.Chain 1pcs;
13.Axle installation tools 1 set;
Details:

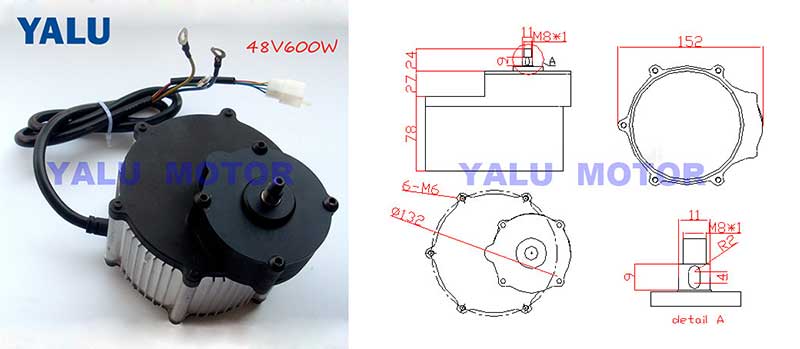

Motor SPECS:
APPLICATIONS:
