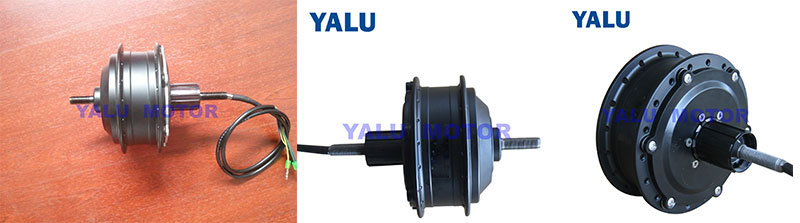

H-DHK Rear drive disc brake Card type various speed Hub Wheel Brushless DC Motor
Specifications:
| Product Type： | H-DHK | Open Size Front (mm)： | 100 |
| Wheel Size (IN)： | 16-26 | Open Size Rear （mm）： | 135 |
| Rated Voltage (V)： | 36/48 | Drive： | Rear |
| No-load current (A) | 0.7 | Cable Location： | Shaft center right |
| Rated current (A) | 8 | Spoke Specification： | 12G/14G |
| Rated torque (N)： | 6 | Hall Sensor： | Optional |
| Rated Power (W)： | 240 | Speed Display： | Optional |
| Rated Speed (km/h)： | 20-35 | Surface： | Black painted |
| Rated Efficiency (%)： | ≧80 | Brake Type for Rear： | V/saucer Brake |
| Reduction Ratio： | 0.000743056 | Noise (db)： | < 50 |
| Weight(Rear motor) (kg)： | 2.88 | Waterproof Grade： | IP54 |
