Geared Brushless DC Motor

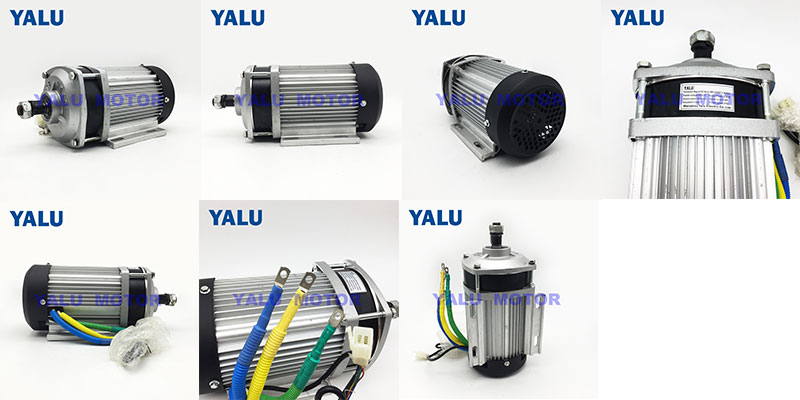

Four-wheel Brushless DC Motor BM1424ZXF for Electric Tricycle Vehicle

Four-wheel Brushless DC Motor BM1424ZXF for Electric Tricycle Vehicle
Four-wheel Brushless DC Motor BM1424ZXF for Electric Tricycle Vehicle
Categories
Geared Brushless DC Motor
Brand
YALU
FOB Port
Ningbo, Shanghai
Terms of Payment
Western Union,T/T Paypal
Update
Time 08/31/2019

Excellent universal 48V/60VBrushless motor,suitable for bikes,scooters,buggies,karts,tricycle,four wheeled vehicle and more!
In reality,it can be used for a variety of different applications!

It is supplied with a bi-directional Speed Controller so you are able to easily connect it and have it ready to go out of the box!
Note that you will need a hall effect throttle to hook up to the controller.

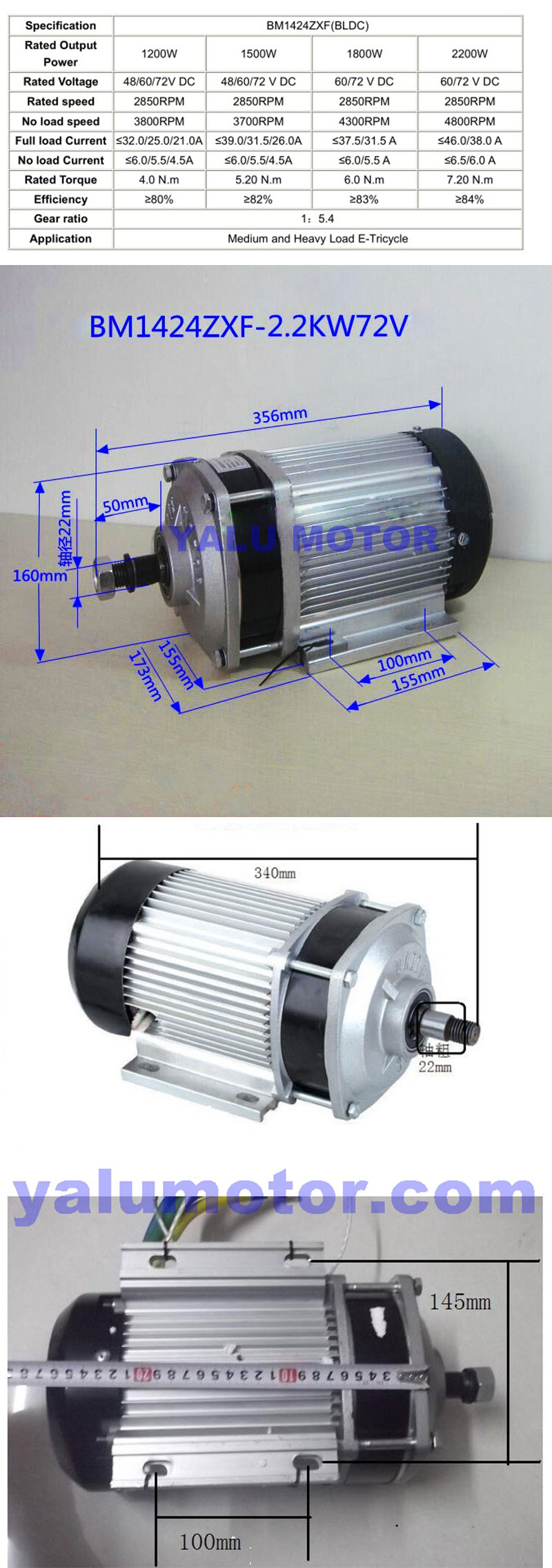

Model:BM1424ZXF.
Rated Output Power -1500W.
Rated Voltage - 60VDC.
Speed after Reduction - 550 RPM.
Rated Speed - 2850 RPM.
Gear Ratio - 1:5.4.
Full Load Current -39.00/31.50A.
No Load Current - 6.00/5.5A.
Rated Torque - 28N.m.

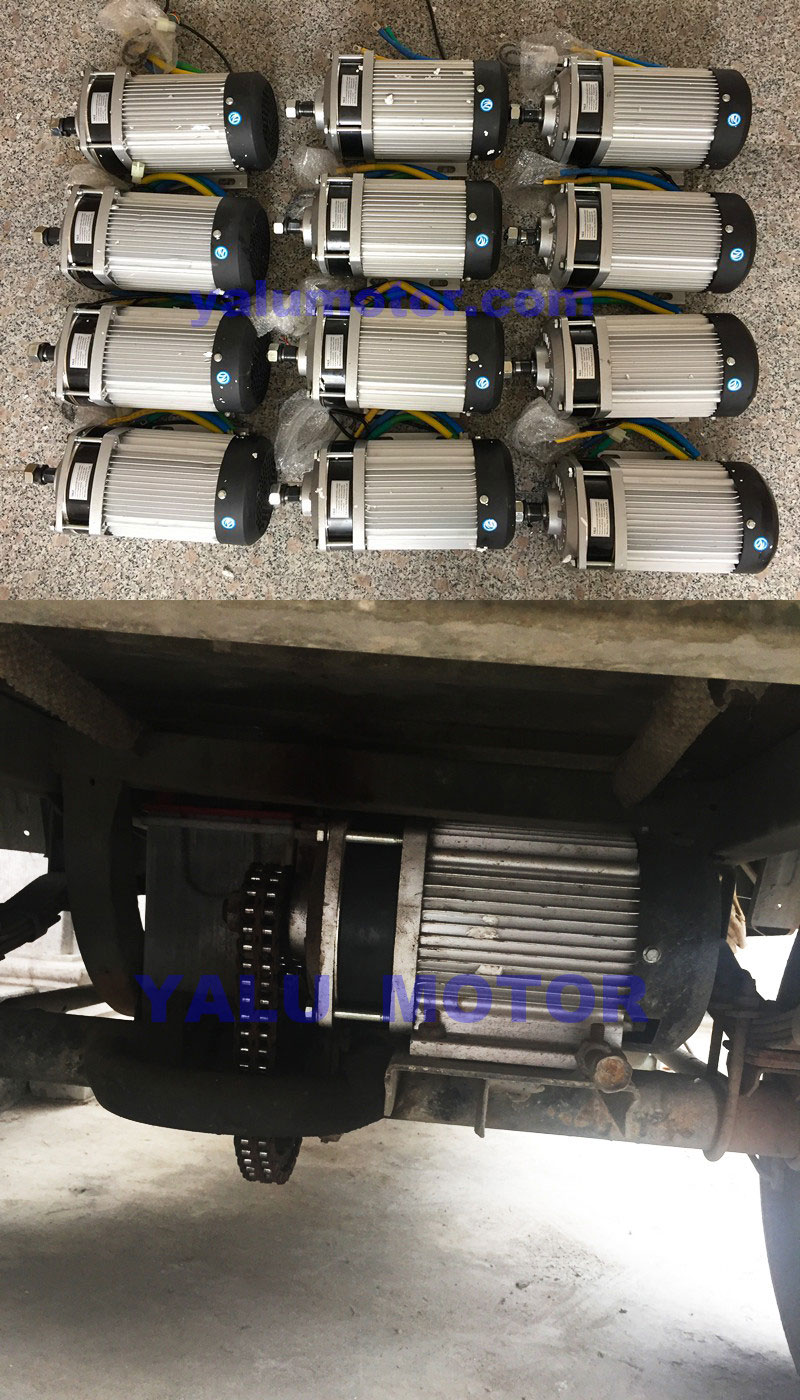

Application - Medium and Heavy Load E-Tricycle.


This Item Include:
1 x Brushless DC Motor
Also can match the controller for customers.
