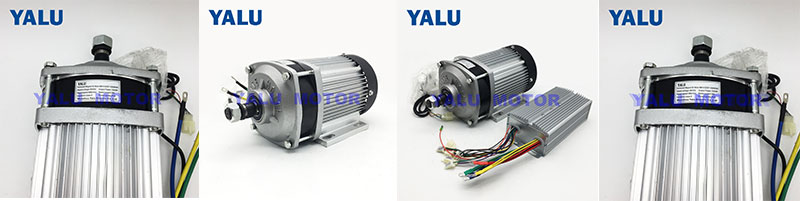

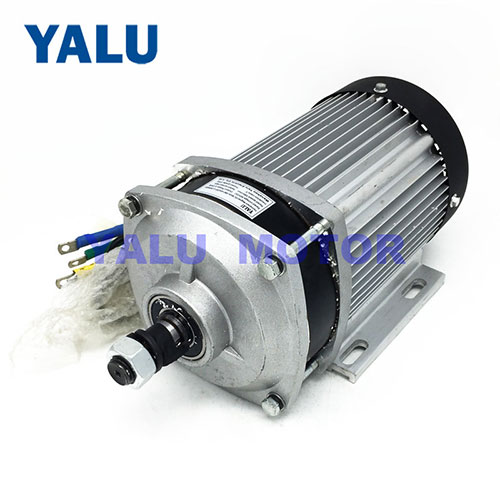

Geared Brushless DC Motor

Bigger Power Three Wheel Cart DC Motor BM1412ZXF Engine Prototype

Bigger Power Three Wheel Cart DC Motor BM1412ZXF Engine Prototype
Bigger Power Three Wheel Cart DC Motor BM1412ZXF Engine Prototype
Categories
Geared Brushless DC Motor
Brand
YALU
FOB Port
Ningbo, Shanghai
Terms of Payment
Western Union,T/T Paypal
Update
Time 08/31/2019

Excellent universal 48V/60VBrushless motor,suitable for bikes,scooters,buggies,karts,tricycle,four wheeled vehicle and more!
In reality,it can be used for a variety of different applications!

It is supplied with a bi-directional Speed Controller so you are able to easily connect it and have it ready to go out of the box!
Note that you will need a hall effect throttle to hook up to the controller.

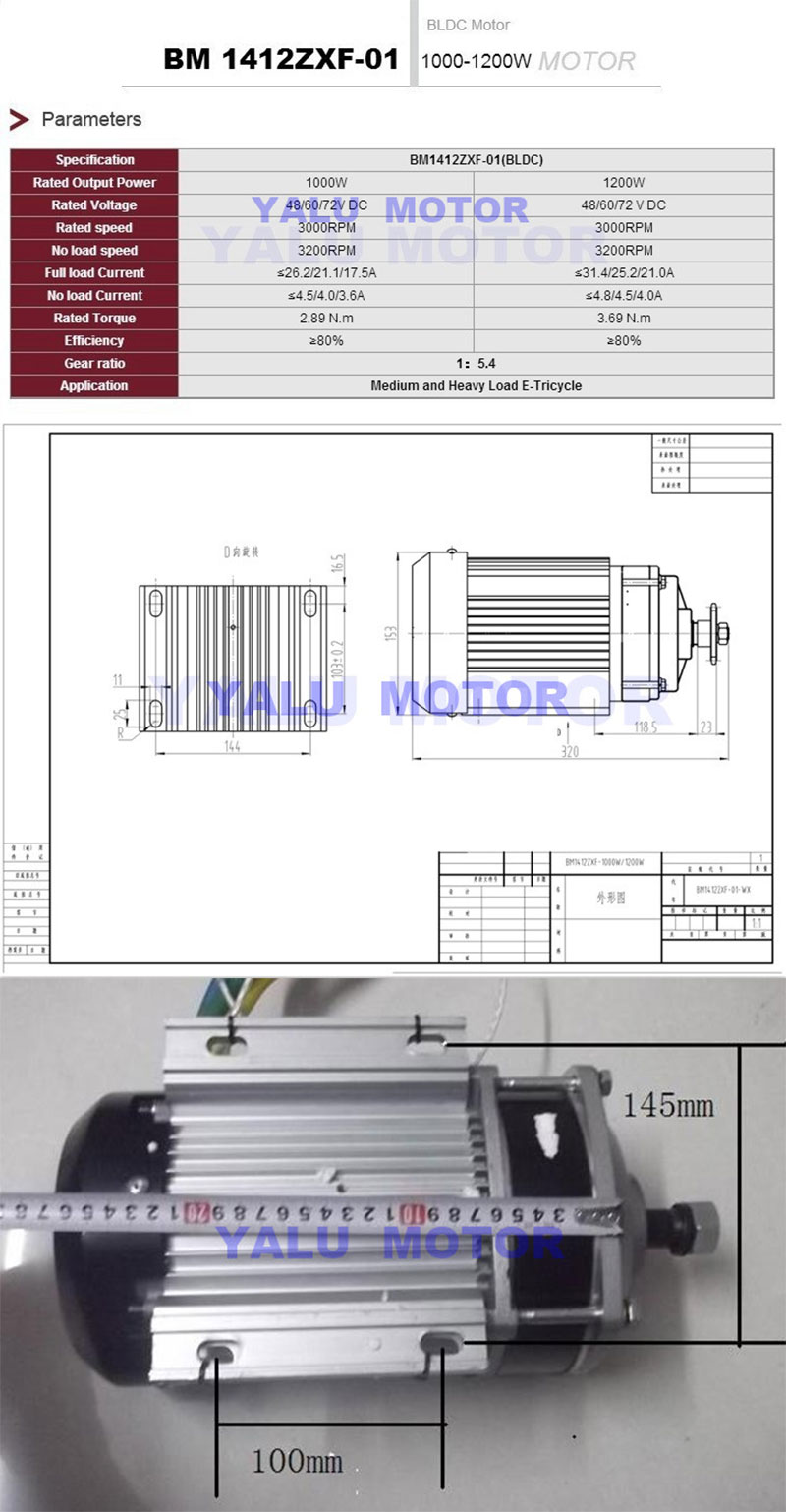

Model:BM1412ZXF.
Rated Output Power -1000W.
Rated Voltage - 48V/60VDC.
Speed after Reduction - 555 RPM.
Rated Speed - 3000 RPM.
Gear Ratio - 1:5.4.
Full Load Current - 26.2/21.10A.
No Load Current - 4.50/4.0A.
Rated Torque - 15.60 N.m.

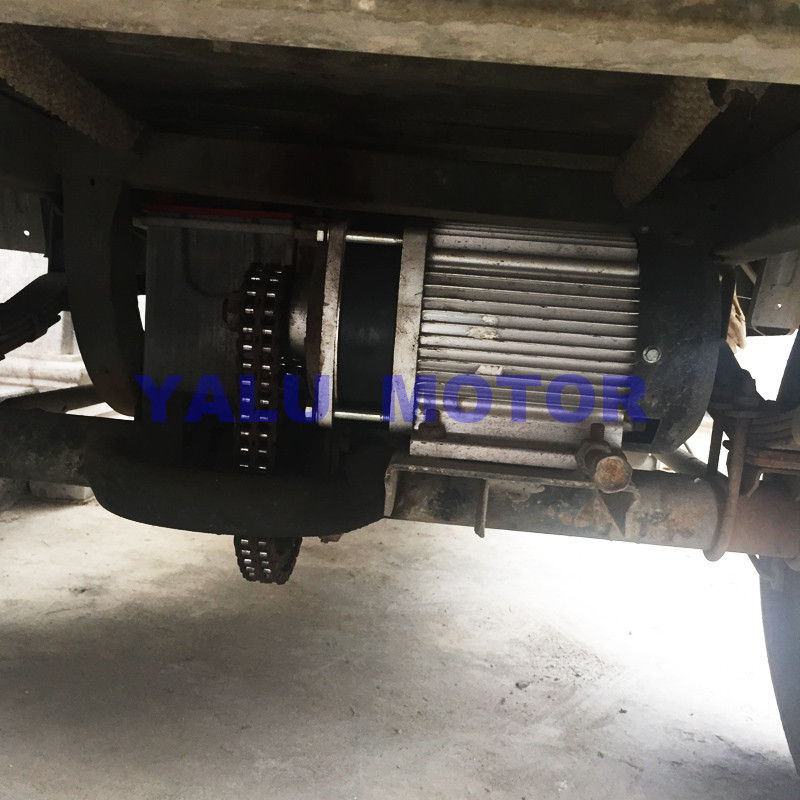

Application - Small and  Medium size E-Tricycle.
Load weight:around 800KG

This Item Include:
1 x Brushless DC Motor
Also can match the controller for customers.
