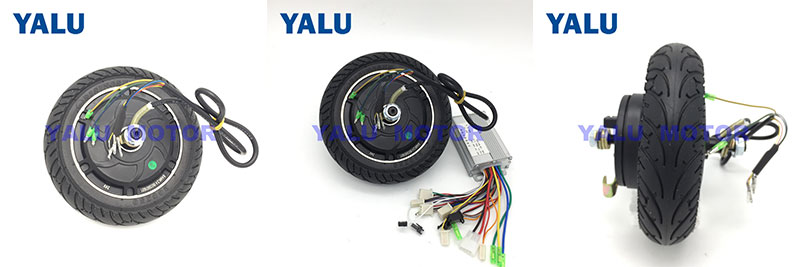

This is 8"brushless hub motor for electric scooter that has 65mm width .

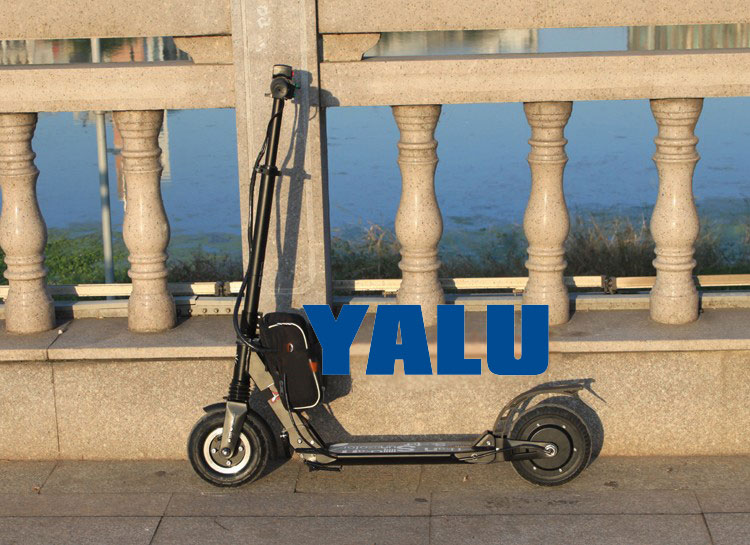

This is a gearless brushless hub motor. It is designed for high speed electric scooter, or other high speed electric vehicle.
The current power is 350W, max load is 70KG.

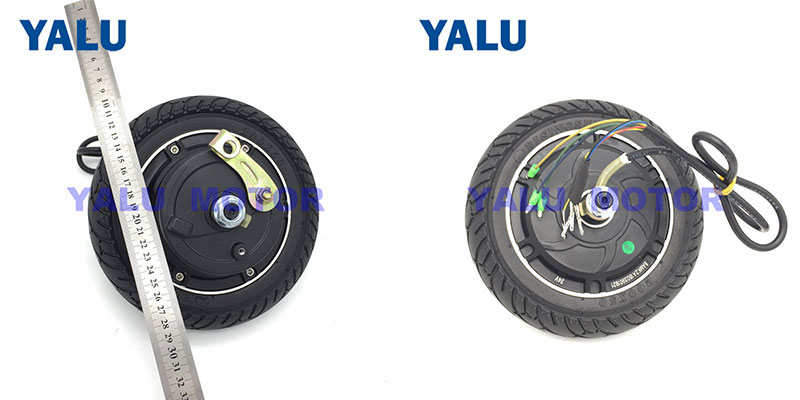

Motor specification
Model:YL-01
Voltage: 24/36 Volt
Output: 350 Watt
Max speed: 40 KM/H
Max Current: 17A
Max Torque: 11 N.m
Max Loading: 70 KG
Wheel Size: 8 inch
Brake: E-ABS brake
Weight: 3 KG
Suitable: fork inside width more than 65mm

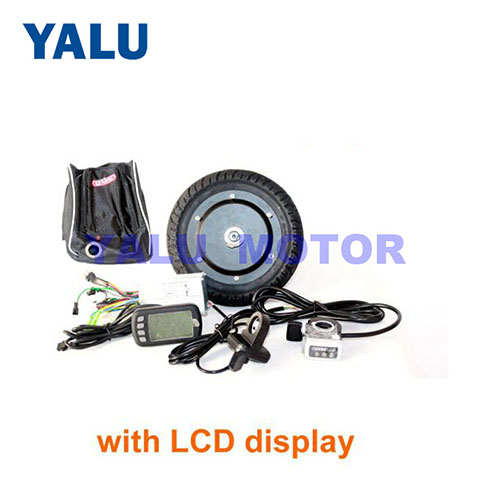

The kit with LCD display include:
1.1x36V 350W brushless hub motor
2.1xMotor controller
3.1xBrake thumb throttle
4.1xThumb accelerator
5.1xLCD display
6.1xCable pipe & ribbon
7.1x Battery bag (gift)

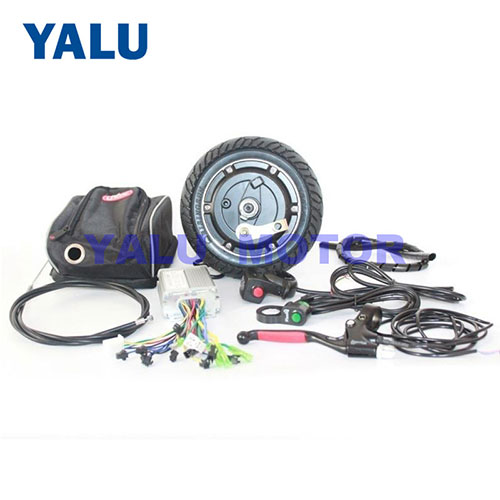

The kit without LCD display include:
1.1x36V 350W brushless hub motor
2.1xMotor controller
3.1xBrake thumb throttle
4.1xThumb accelerator
5.1xCable pipe & ribbon
6.1x Battery bag (gift)
If you have enquiry about quotation,please feel free to email us yalu@wzyalu.com or use thefollowing en-quiry form.Our sales representative will contact you within 24 hours.Thank you for your interest in our products.
