Bicycle Gas Engine Kit

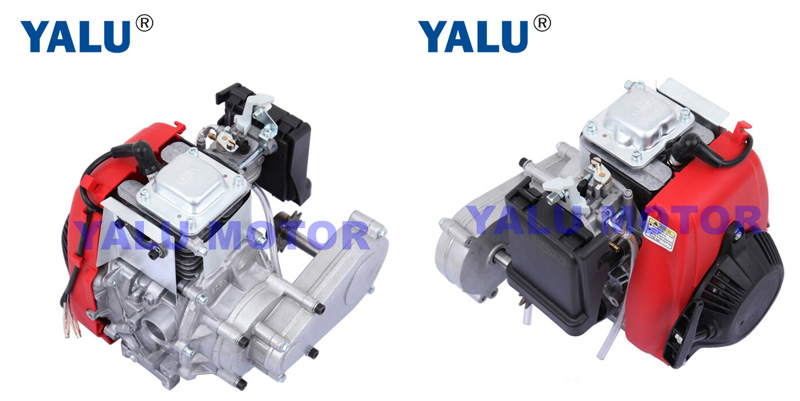

49CC 4-Stroke Gas Petrol Motorized Bike Bicycle Engine Motor Kit

49CC 4-Stroke Gas Petrol Motorized Bike Bicycle Engine Motor Kit
49CC 4-Stroke Gas Petrol Motorized Bike Bicycle Engine Motor Kit
Categories
Bicycle Gas Engine Kit
Brand
YALU
FOB Port
Ningbo, Shanghai
Terms of Payment
Western Union,T/T Paypal
Update
Time 11/01/2019

This 49cc petrol gas engine kit is used to upgrade the regular bike to a motorized bike. After converting your bike, you can enjoying riding at a faster speed, which can reach 43-51km/h. It almost runs as fast as a motorcycle or scooter, making your outdoor trip more convenient. This engine kit fits most 26" or 28" bikes with V-frame.

Features:

A complete engine kit for converting your bike
Heavy duty metal engine body for added durability
Super fuel-efficient, only consuming 2.5 litre fuel per 100km
Fast and smooth, can speed up to 38km/h
Comes with all needed hardware for easy installation
Fit for most type 26" and 28" bikes, such as mountain bikes, road bikes,cruisers, choppers.

Specification:

Mode of Engine:142f,Single cylinder, air-cooling, 4-stroke
Bore x Stroke:41.8mm x 35.5mm(1.65 x 1.39)
Displacement: 49 cubic centimeters (2.99 cubic inches)
Rated Power:1.6Kw/7000r/min (2.1 horsepower/7000r/min)
Rated Torque:2.7Nano/4500r/min (2 Pound feet/4500r/min)
Compression Ratio:8:1
PTO shaft rotation: Counterclockwise (from the PTO axis side)
Ignition Mode:Transistor ignition
Starting system: recoil starter
Carburetor float
Lubrication system: forced splash
Speed control system: centrifugal machine
Air filter semi-dry
Size:520*280*280
Weight:14.5kg

Package included:

1.1xEngine
2.1xFuel tank
3.1xExhaust pipe
4.1xThrottle handle switch
5.1xThrottle Cable
6.1xClutch Cable
7.1xGuide wheel
8.1xThrottle handle
9.1xOil switch
10.1xFuel pipe
11.1xSprocket&9 Hole clamp Pads
12.1xChain cover
13.1xChain
14.1x 4 stroke base
15.1xExtended crank
16.1xExtended crank sprocket

Motor Specification:

Mode of Engine:142f,Single cylinder, air-cooling, 4-stroke
Bore x Stroke:41.8mm x 35.5mm(1.65 x 1.39)
Displacement: 49 cubic centimeters (2.99 cubic inches)
Rated Power:1.6Kw/7000r/min (2.1 horsepower/7000r/min)
Rated Torque:2.7Nano/4500r/min (2 Pound feet/4500r/min)
Compression Ratio:8:1
PTO shaft rotation: Counterclockwise (from the PTO axis side)
Ignition Mode:Transistor ignition
Starting system: recoil starter
Carburetor float
Lubrication system: forced splash
Speed control system: centrifugal machine
Air filter semi-dry
Size:520*280*280
Weight:14.5kg
